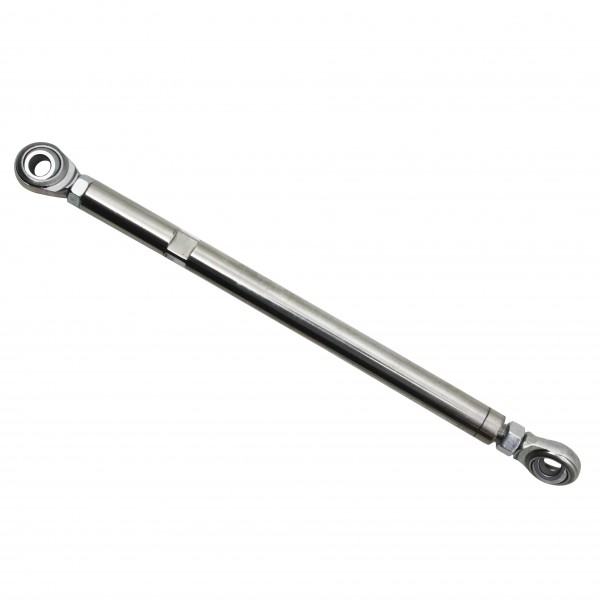

Adjustable Stainless Steel Tension Rods 8-1/2" Long with heim 3/8" Eyelet Ends
Part Number:
69-543
Universal 8 1/2" Stainless Steel Adjusting Rod.

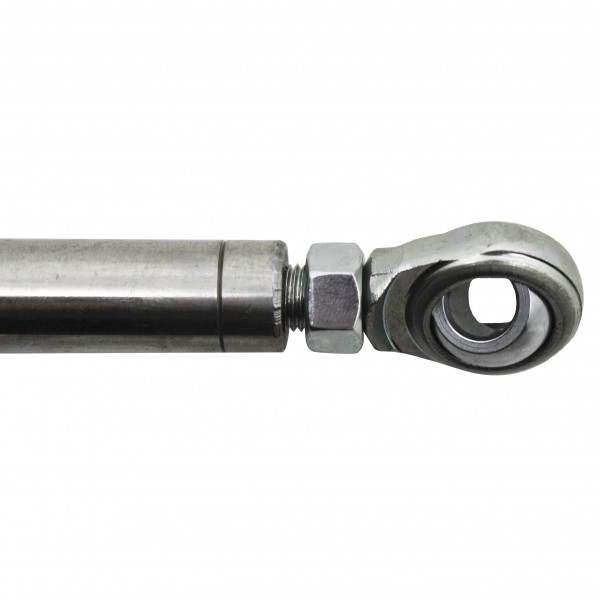

Adjusting rod features heim 3/8" (0.375) eyelet rod ends for use with 3/8" diameter bolts or smaller when used with a shoulder bolt. It offers 3/4" of adjustment on each end and has left and right hand threads for easy adjustment without needing to remove.
Dimensions:
-Rod Length: 5/8" (6.25).
-Center to center fully in: 7-3/8".
-Center to center fully adjusted: 8-7/8".
-Heim joints: 3/4-24 SAE Thread Pitch with eyelet 3/8 Inch (0.375) Hole.
Adjusting rod features heim 3/8" (0.375) eyelet rod ends for use with 3/8" diameter bolts or smaller when used with a shoulder bolt. It offers 3/4" of adjustment on each end and has left and right hand threads for easy adjustment without needing to remove.
Dimensions:
-Rod Length: 5/8" (6.25).
-Center to center fully in: 7-3/8".
-Center to center fully adjusted: 8-7/8".
-Heim joints: 3/4-24 SAE Thread Pitch with eyelet 3/8 Inch (0.375) Hole.
