Fluid Cooler 18 Row Hi-Flow Racing Remote with Low Profile Fan, 7/8-14 UNF O-ring
Part Number:
65860

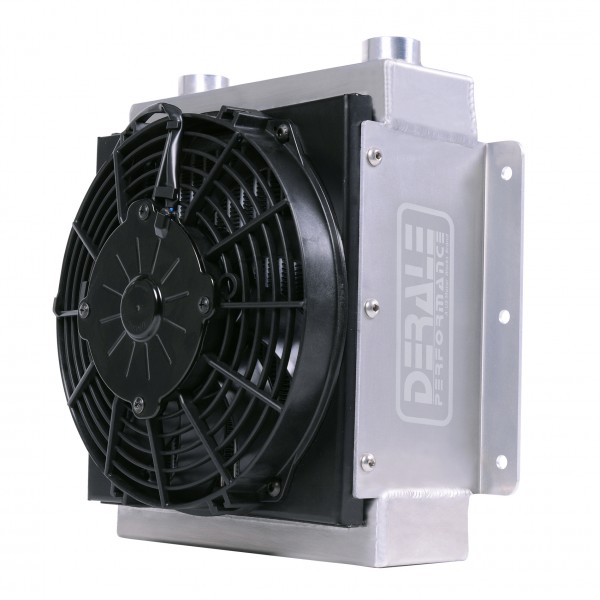

Fluid Cooler 18 Row Hi-Flow Racing Remote with Low Profile 8" Fan.
Derale is proud to introduce our latest addition to the remote cooler lineup. This 18 Row Hi-Flow Racing Cooler is precision TIG welded and features the most efficient tube design in the aftermarket, which supports up to 350 PSI with minimal pressure drop. Mounted 8" Electric fan is IP68 certified (Water/Dust Proof) and designed to do its best under the most strenuous conditions. Perfect for everything from Drag racing to Off-Road.
Features:
8" Electric fan supplies optimum airflow.
Dramatically extends engine or transmission life.
Aircraft aluminum grade cooler design.
Designed for puller applications.
Extruded tube design with turbulators for maximum heat dissipation.
Precision TIG welding.
20 US GPM Flow rate.
Supports up to 350 P.S.I., with minimal pressure drop.
Specifications:
Inlet(s) size: 7/8"-14 UNF O-ring.
Fan size: 8"
CFM: 625.
Fluid Capacity: 47 oz..

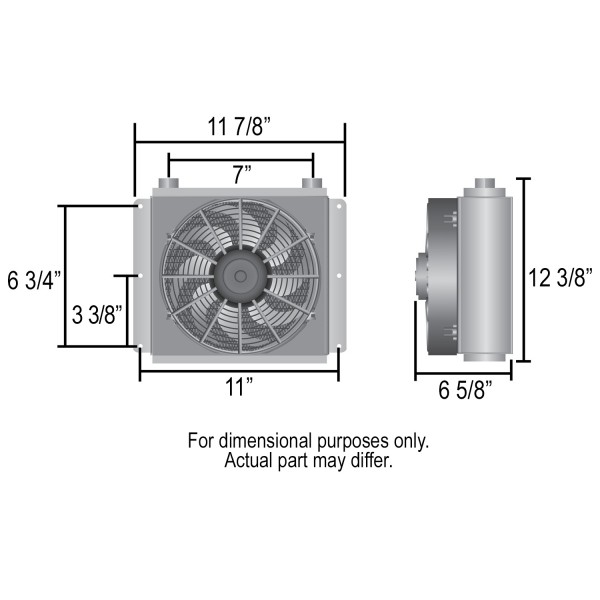

Inlet Dim.: 7".
Width: 11 7/8".
Height: 12-3/8".
Depth: 8-1/2".
Mounting: 6-3/4" x 7-3/16".
125,000 BTU's Per Hour.
