Single Ports Up Remote Filter Mount -10AN(7/8"-14) O-ring ports, 3/4"-16 Thread
Part Number:
35708
Derale 35708 Single Ports Up Remote Filter Mount -10AN(7/18-14) O-ring ports, 3/4"-16 Thread.

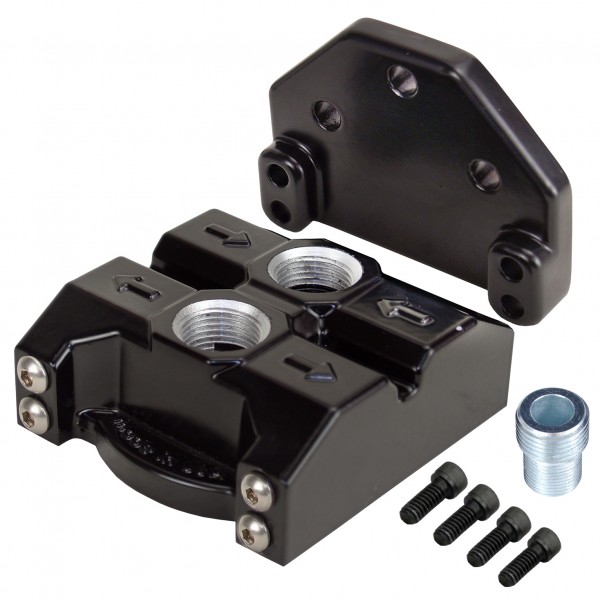

This high quality die cast aluminum filter mount features a billet look without the expensive billet price tag. The -10AN (7/8"-14) O-ring inlet & outlet ports up design allows for simple relocating of an oil filter. With the 3 hole bracket included this unique mounting system allows mount to be rotated 180 degree, therefore switching the port locations. Also features a durable black powder coat finish. Filter mount uses Fram PH8A oil filter or equivalent.
Features:
Allows oil filter to be remote mounted anywhere.
New innovative 180 degree double mount design.

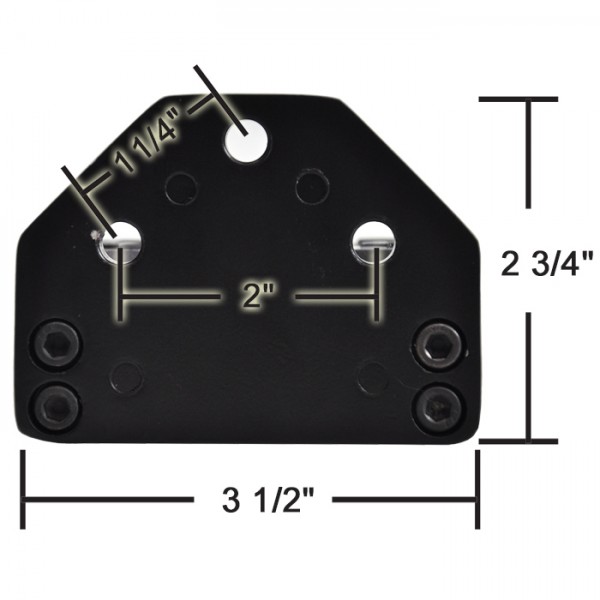

Removable 3 hole mounting bracket.
Powder coated black finish.
-10AN / 7/8"-14 O-ring ports.
3/4"-16 filter thread size.
Specifications:
Filter thread size: 3/4"-16.
Filter landing: 2-1/2" to 3-1/2".
Inlet size: -10AN / 7/8"-14 O-ring.
This high quality die cast aluminum filter mount features a billet look without the expensive billet price tag. The -10AN (7/8"-14) O-ring inlet & outlet ports up design allows for simple relocating of an oil filter. With the 3 hole bracket included this unique mounting system allows mount to be rotated 180 degree, therefore switching the port locations. Also features a durable black powder coat finish. Filter mount uses Fram PH8A oil filter or equivalent.
Features:
Allows oil filter to be remote mounted anywhere.
New innovative 180 degree double mount design.
Removable 3 hole mounting bracket.
Powder coated black finish.
-10AN / 7/8"-14 O-ring ports.
3/4"-16 filter thread size.
Specifications:
Filter thread size: 3/4"-16.
Filter landing: 2-1/2" to 3-1/2".
Inlet size: -10AN / 7/8"-14 O-ring.
