Thermostatically Controlled LS Engine Oil Cooler Bypass Adapter Kit Billet Black
Part Number:
35621

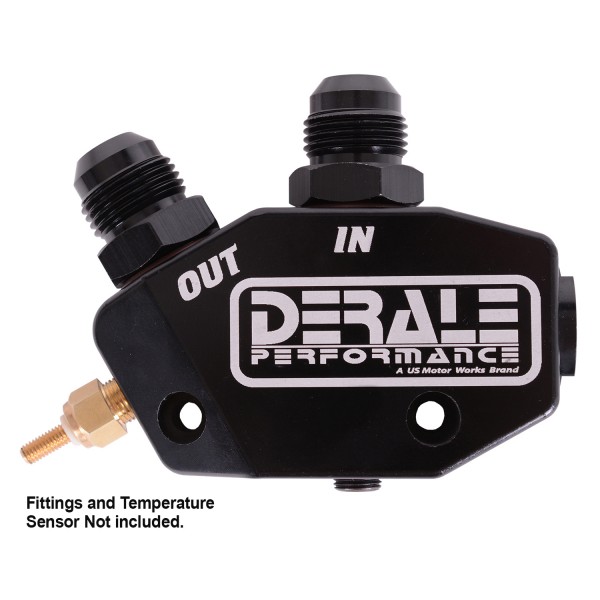

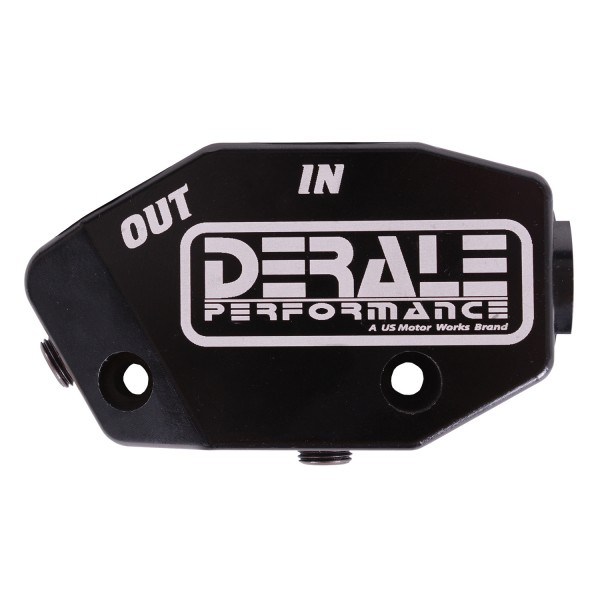

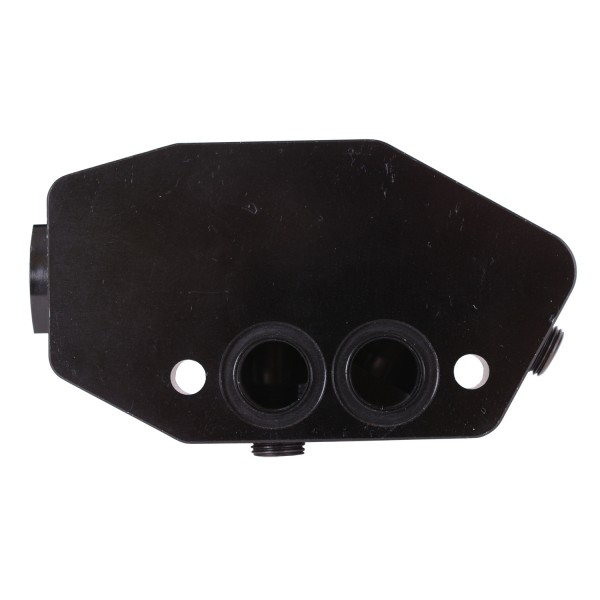

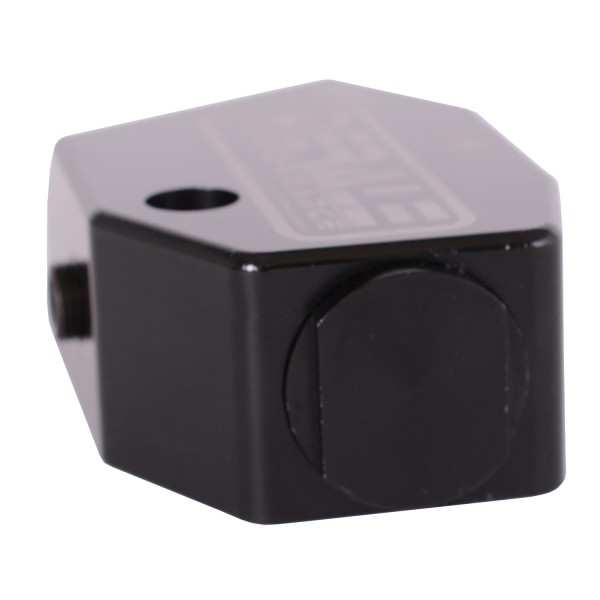

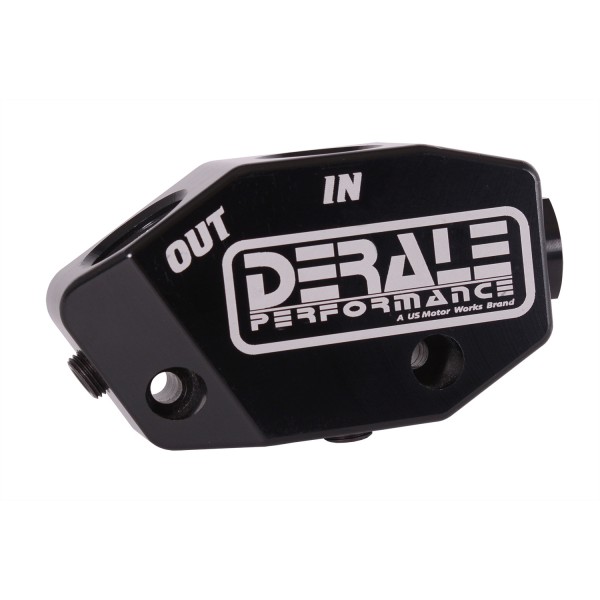

Derale 35621 Black Billet Thermostatically Controlled LS Engine Oil Cooler Bypass Adapter Kit.
This Billet Aluminum LS Engine Adapter features a built in 180°F Thermostat to help reduce engine wear and horse power loss. The oil thermostat allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine to achieve the ideal operating temperature quicker before passing the oil through the cooler.
Features:
Bypasses cooler until fluid temperature reaches 180°F.
Provides quicker warm-up temperatures.
Perfect for cold weather climates.
Flows up to 20 gallons per minute.
Rated up to 200 psi.
Black anodized finish.
-10AN ORB inlet/outlet ports for maximum flow.
Specifications:
Activating temperature: 180°F.
Ultra low profile design.
Clears most long tube headers for LS swaps.
6061 Aluminum Billet.
Viton o-rings.
1/8" NPT Ports.
