Single Side Ports Remote Filter Mount 3/8"Npt Ports, 3/4"-16 Thread Derale
Part Number:
25049
Derale 25046 Single Side Ports Up 3/8" NPT Filter Mount with 3/4"-16 Filter Threads.

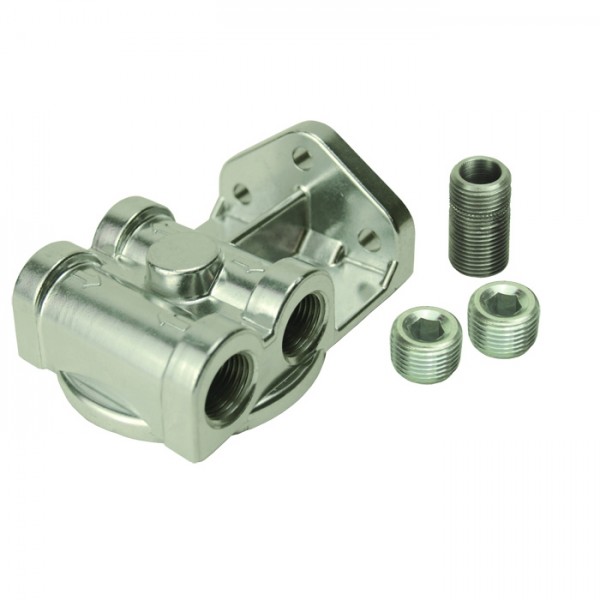

Die-cast from high quality aluminum, this single Remote Filter mount allows oil filter to be mounted anywhere space permits to allow quick and easy filter changes. A heavy duty three-hole mounting plate provides a solid mount and a new landing is provided for easier sensor/sending unit placement and avoiding interference with the 3/8" NPT inlet and outlet ports. 3/4"-16 filter thread nipple included with kit.
Features:
Allows oil filter to be remote mounted anywhere.
Cast from high quality aluminum.
Ultra bright finish.

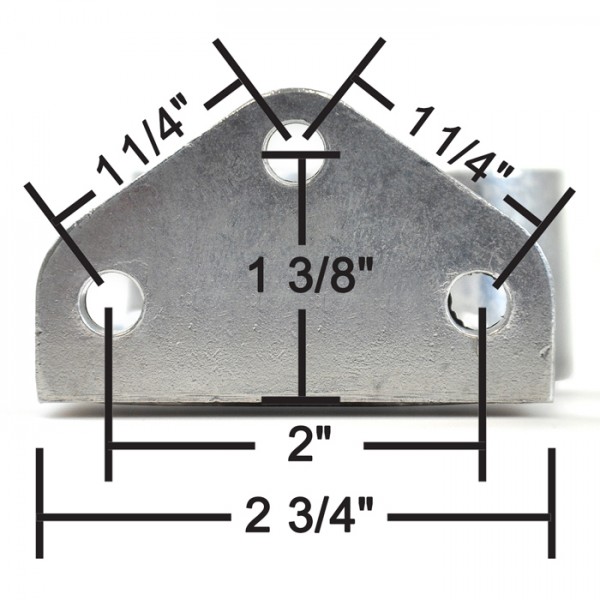

3 bolt heavy duty mounting plate.
3/4"-16 filter thread size.
3/8" NPT ports.
Kit includes 2 threaded 3/8" NPT plugs and 3/4"-16 filter nipple.
Specifications:
Filter thread size: 3/4"-16.
Filter landing: 2-1/2" to 3-1/2".
Inlet size: 3/8" NPT.
