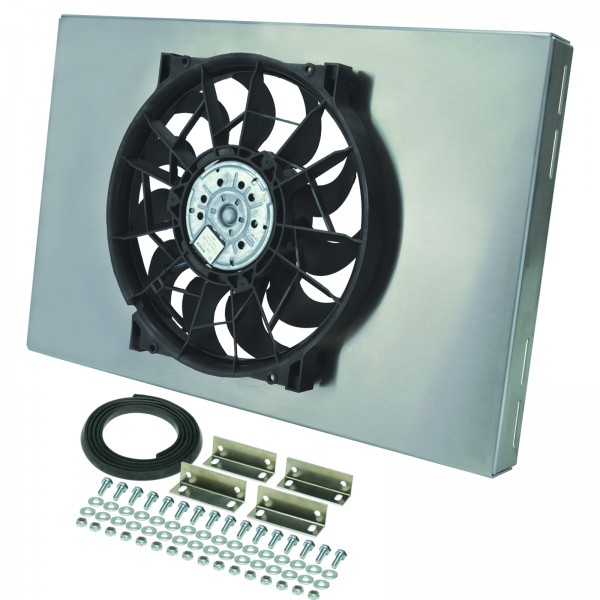

High Output 14" Electric Radiator Fan Alum Shroud 23-7/16"Wx15-7/16"Hx2-3/4"D
Part Number:
16827
Powerpack - High Output Single 14'' Electric Radiator Fan/Aluminum Shroud Kit.
This High Output Single Radiator Fan Powerpack is part of the High Output Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 23 7/16" wide by 15 7/16" top to bottom and only 2 3/4" thick to offer a yet precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 14" high output two-speed fan is one of the best in our line-up offering 2100 CFM when on high to create the most airflow possible in a compact size.
Features:
Designed for primary cooling.
Raw aluminum shroud construction can be polished, painted or anodized.
High Output 265 watt 2-speed motor.
2100 CFM.
Ultra-quiet patented skewed blade design.
Puller (engine side) applications only.
Kit includes mounting brackets and complete mounting hardware.
Specifications:
CFM high/low: 2100/1500.
Amp draw high/low: 22/16.2.
Width:23 7/16".
Height: 15-7/16".
Shroud Depth: 1 1/8".
Overall depth: 2 3/4".
Mounting Hole(s) center to outside edge: 1/2".
This High Output Single Radiator Fan Powerpack is part of the High Output Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 23 7/16" wide by 15 7/16" top to bottom and only 2 3/4" thick to offer a yet precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 14" high output two-speed fan is one of the best in our line-up offering 2100 CFM when on high to create the most airflow possible in a compact size.
Features:
Designed for primary cooling.
Raw aluminum shroud construction can be polished, painted or anodized.
High Output 265 watt 2-speed motor.
2100 CFM.
Ultra-quiet patented skewed blade design.
Puller (engine side) applications only.
Kit includes mounting brackets and complete mounting hardware.
Specifications:
CFM high/low: 2100/1500.
Amp draw high/low: 22/16.2.
Width:23 7/16".
Height: 15-7/16".
Shroud Depth: 1 1/8".
Overall depth: 2 3/4".
Mounting Hole(s) center to outside edge: 1/2".
