Derale 9" Tornado Electric Reversible Puller Fan with Mount Kit 570Cfm
Part Number:
16619
Derale 16619 9" Tornado Electric Puller Fan, Standard Mounting Kit
The 9" reversible Tornado fan uses 8 straight blades, moving 570 CFM at 0 static pressure while drawing only 5.4 amps. Includes mounting kit and illustrated installation instructions.
Features:
Reliable, efficient, high torque motors.
Ultra-quiet patented straight blade design.
570 CFM.
Reversible design - can be used as a pusher or puller.
Includes nylon mounting kit.
Specifications:

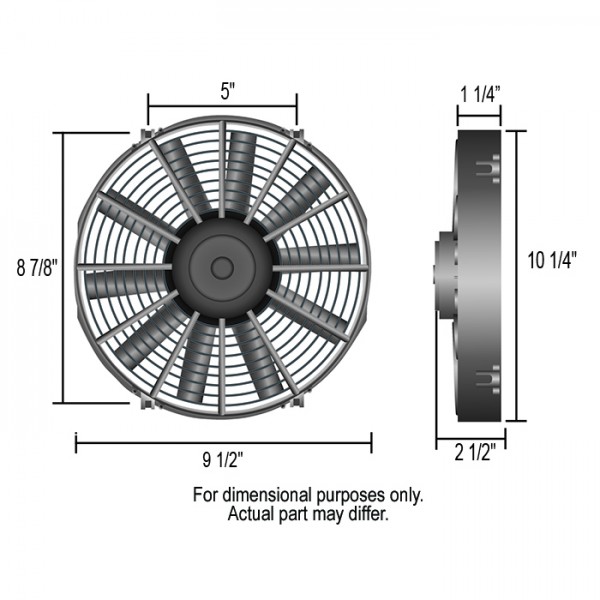

Fan size: 9".
CFM: 570.
Amp draw: 5.4.
Width: 9-1/2".
Height: 10-1/4".
Depth: 1-1/4".
Overall depth: 2-1/2".
Mounting: 8-7/8" x 5".
Airflow: Puller (reversible).
The 9" reversible Tornado fan uses 8 straight blades, moving 570 CFM at 0 static pressure while drawing only 5.4 amps. Includes mounting kit and illustrated installation instructions.
Features:
Reliable, efficient, high torque motors.
Ultra-quiet patented straight blade design.
570 CFM.
Reversible design - can be used as a pusher or puller.
Includes nylon mounting kit.
Specifications:
Fan size: 9".
CFM: 570.
Amp draw: 5.4.
Width: 9-1/2".
Height: 10-1/4".
Depth: 1-1/4".
Overall depth: 2-1/2".
Mounting: 8-7/8" x 5".
Airflow: Puller (reversible).
