Derale 14" Straight Blade Reversible 1225Cfm Electric Fan with Thermostat
Part Number:
16314
Derale 16314 14" Dyno Cool Straight Blade Reversible 1225Cfm Electric Fan with Adjustable Thermostat.
A great auxiliary fan or primary cooling fan for smaller cars and trucks, this 14" straight blade electric fan produces 1100 CFM at 0 static pressure, drawing only 12.4 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.
Features:
Ultra low profile design.
Straight fan blades.
1100 CFM.
Reversible design - can be used as a pusher or puller.

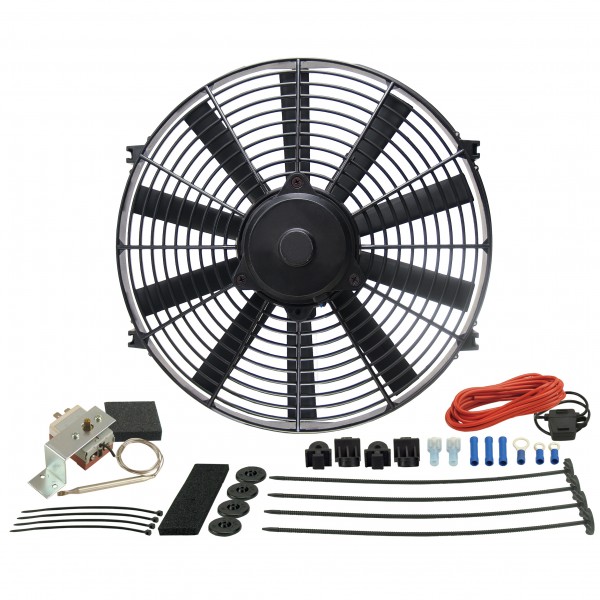

Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections.

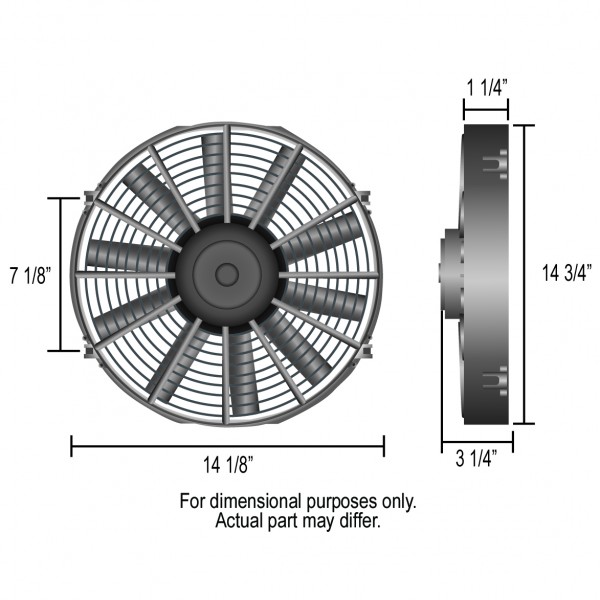

Specifications:
Fan size: 14".
CFM: 1100.
Amp draw: 12.4.
Width: 14-1/8".
Height: 14-3/4".
Depth: 1-1/4".
Overall depth: 3-1/4".
Mounting: 7-1/8".
Airflow: Puller (reversible).
