Derale 10" Straight Blade Reversible 625Cfm Electric Fan with Thermostat
Part Number:
16310
Derale 16310 10" Dyno Cool Straight Blade Reversible 625Cfm Electric Fan with Adjustable Thermostat.

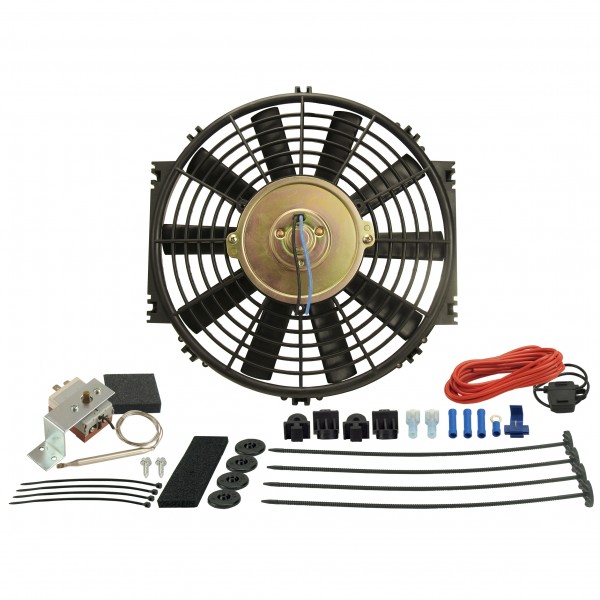

Our 10" straight blade electric fan moves 500 CFM at 0 static pressure, drawing only 6.4 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.
Features:
Ultra low profile design.
Straight fan blades.
500 CFM.
Reversible design - can be used as a pusher or puller.
Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections.

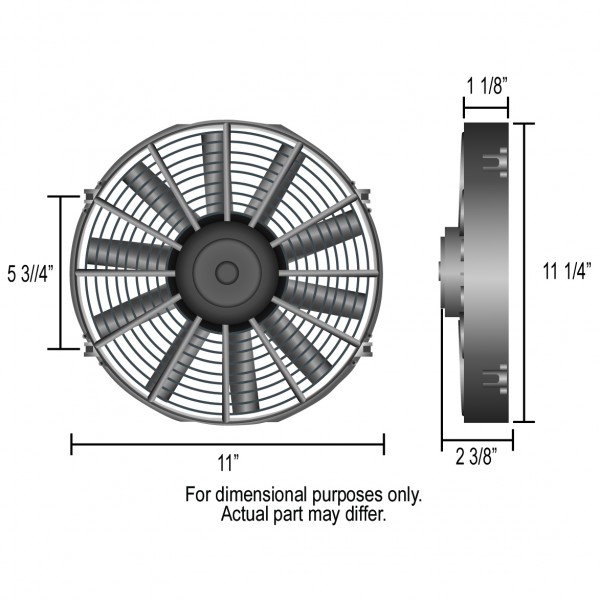

Specifications:
Fan size: 10".
CFM: 500.
Amp draw: 6.4.
Width: 11".
Height: 11-1/4".
Depth: 1-1/8".
Overall depth: 2-3/8".
Mounting: 5-3/4".
Airflow: Puller (reversible).
Our 10" straight blade electric fan moves 500 CFM at 0 static pressure, drawing only 6.4 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.
Features:
Ultra low profile design.
Straight fan blades.
500 CFM.
Reversible design - can be used as a pusher or puller.
Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections.
Specifications:
Fan size: 10".
CFM: 500.
Amp draw: 6.4.
Width: 11".
Height: 11-1/4".
Depth: 1-1/8".
Overall depth: 2-3/8".
Mounting: 5-3/4".
Airflow: Puller (reversible).
