Derale 12" High Output Single Radiator Pusher/Puller 2 Speed Fan 1450Cfm
Part Number:
16212

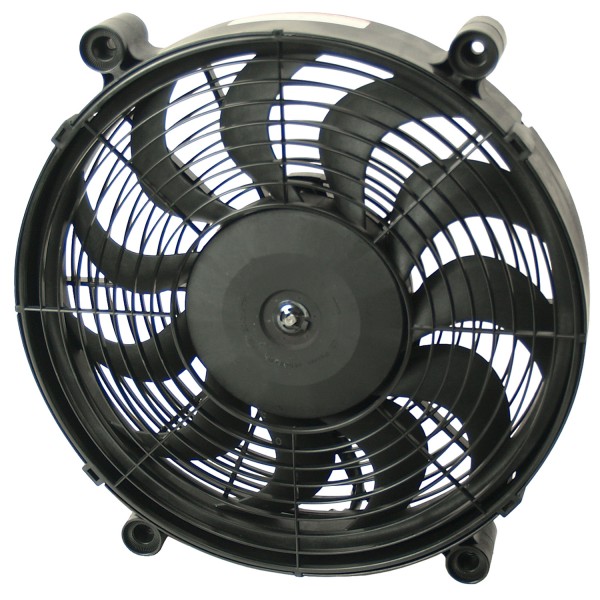

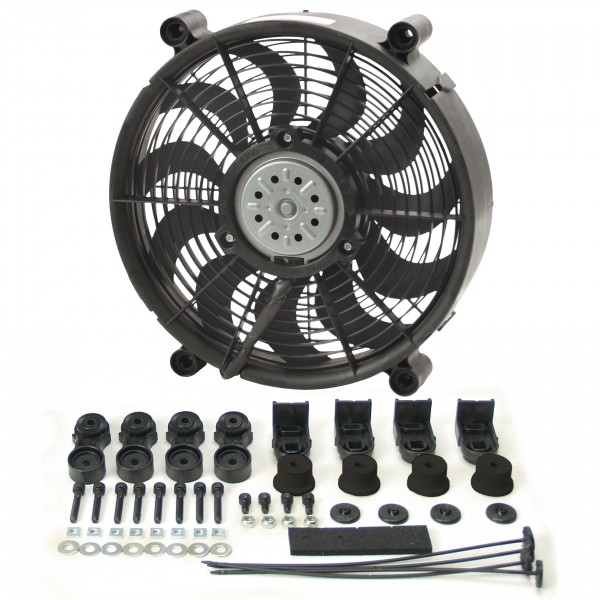

Derale 16212 12" High Output Single RAD Pusher/Puller Fan with Premium Mount Kit.
Our most compact version of the High Output Single RAD fan series, this 12" fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, each includes a patented ratchet mounting system for a professional installation. Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 1450 CFM while drawing up to 21 amps.
Features:
Mounts as a Pusher or Puller without flipping blade or switching motor leads.
State-of-the-art symmetrical design.
High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation).
1450 CFM on high speed / 1000 CFM on low speed.
Ultra-quiet patented skewed blade design.

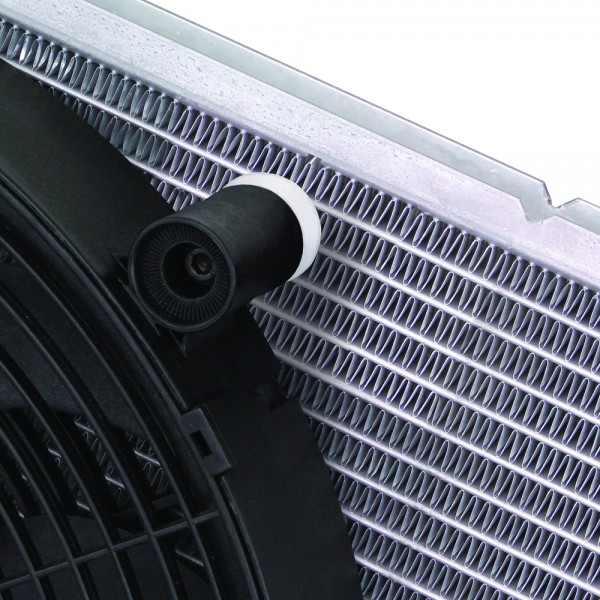

Patented ratchet mounting system.
Specifications:
CFM high/low: 1450/1000.
Amp draw high/low: 21/15.

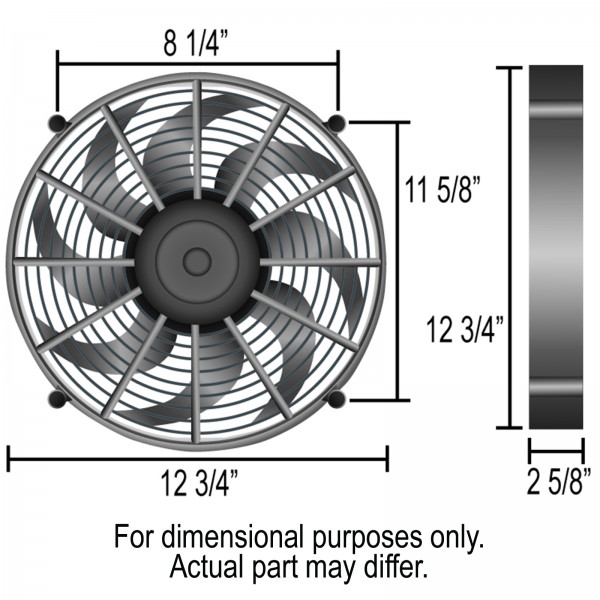

Width: 12-3/4".
Height: 12-3/4".
Depth: 2-5/8".
Mounting: 8-1/4" x 11-5/8".
