Derale Electra-Cool Transmission Cooler Kit 16 Pass 15-3/4"x11-1/2"x5"
Part Number:
15900

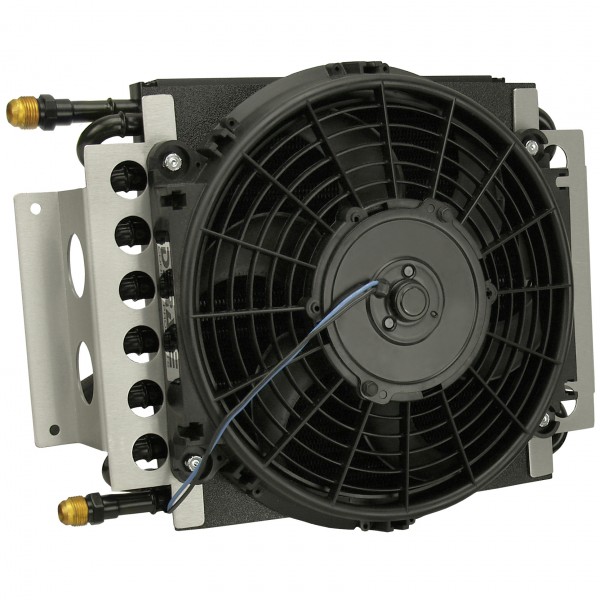

Derale 15900 Electra-Cool Fluid Tube & Fin Transmission Cooler 16 Pass.
With it's own air supply, the Electra-Cool Remote Transcooler can literally be mounted wherever space permits, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16 pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 5/16" or 3/8" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission, and perfect for medium to heavy-duty towing and hauling.
Specifications:
Cooler style: 16 pass Tube & Fin.
Inlet size: -8AN.
Fan size: 10".
CFM: 650.
Amp draw: 5.3.

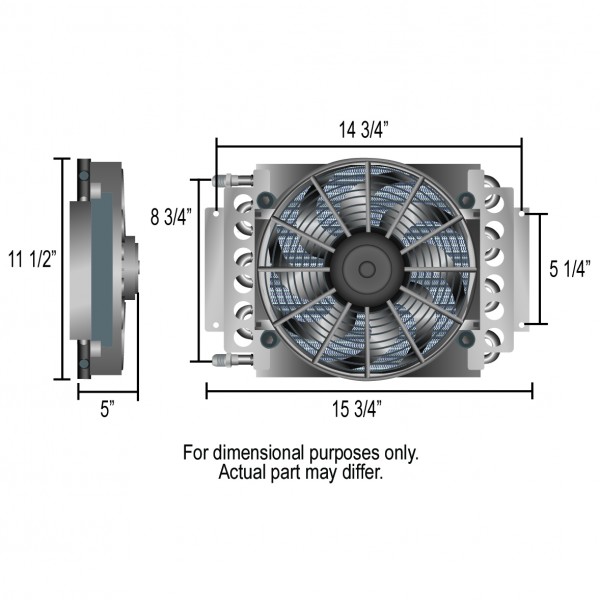

Width: 15-3/4".
Height: 11-1/2".
Depth: 5".
Inlet dim: 8-3/4".
Mounting: 14-3/4" x 5-1/4".
Cooler Fluid Capacity: 19.6 oz.
Hose size: 3/8".
Hose length: 10'.
Airflow: Puller (reversible).
Features:
Mounts anywhere space permits.
Electric fan supplies optimum airflow.
Dramatically extends engine and transmission life.
16 pass Tube & Fin cooler.
Clear anodized aluminum shroud.
650 CFM reversible Tornado electric fan.
-8AN inlet size.
Derale coolers are rated at 250psi working pressure and 300psi burst strength.

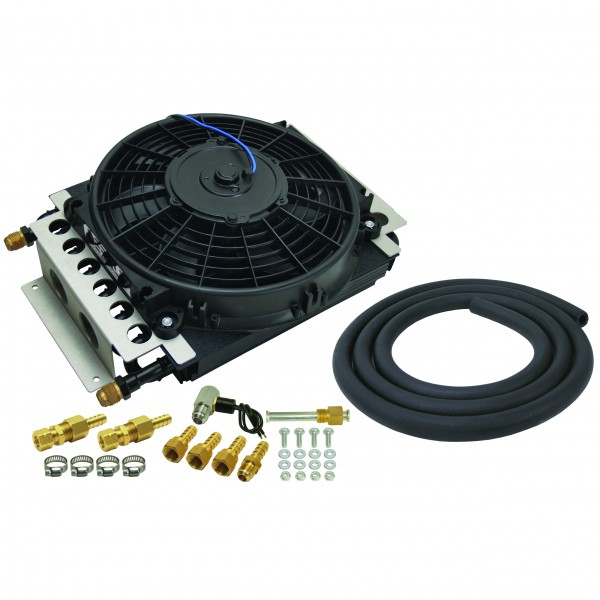

Transmission cooler kit includes fan mounted cooler, two -8AN to 3/8" barbed hose fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 5/16" and 3/8" compression fittings, and hardware.
