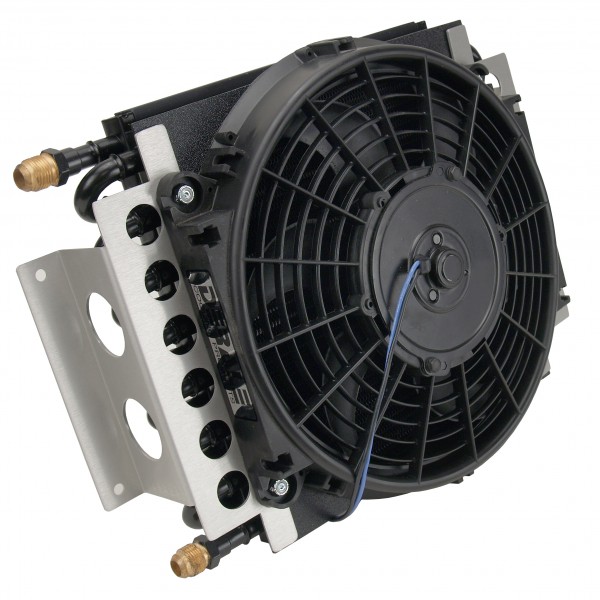

Derale Electra-Cool Fluid Cooler Single 16 Pass 15-3/4"x11-1/2"x5"
Part Number:
15800
Derale 15800 Electra-Cool Fluid Tube & Fin Cooler Single 16 Pass.
With its own air supply available when needed, the Electra-Cool is one of our most popular remote coolers and can literally be mounted anywhere space permits, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a powerful 10" diameter Tornado fan and aluminum brackets, and featuring -8AN male fittings, each unit also includes 2 each -8AN x 3/8" barb fittings. Designed for transmission, power steering and fuel cooling.
Features:
Mounts anywhere space permits.
Electric fan supplies optimum airflow.
Dramatically extends engine and transmission life.
16 pass Tube & Fin cooler.
Clear anodized aluminum shroud.
650 CFM reversible Tornado electric fan.
-8AN inlet size.
Derale coolers are rated at 250psi working pressure and 300psi burst strength.

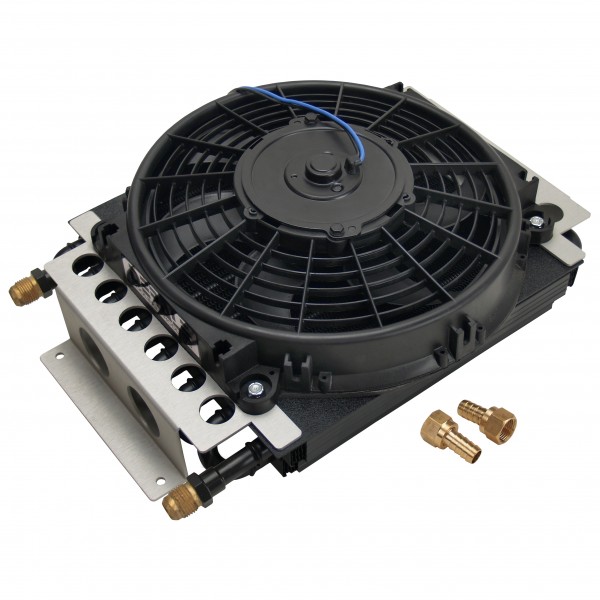

Cooler assembly includes fan mounted cooler, two aluminum -8AN fittings and two -8AN x 3/8" hose barb fittings.

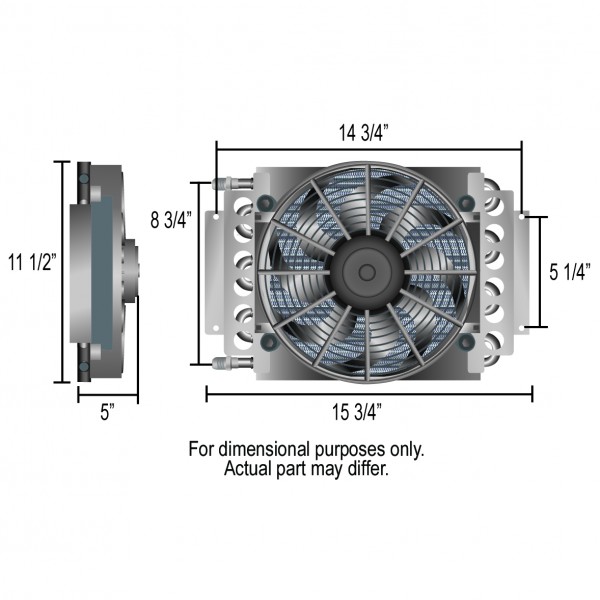

Specifications:
Cooler style: 16 pass Tube & Fin.
Inlet size: -8AN.
Fan size: 10".
CFM: 650.
Amp draw: 5.3.
Width: 15-3/4".
Height: 11-1/2".
Depth: 5".
Inlet dim: 8-3/4".
Mounting: 14-3/4" x 5-1/4".
Cooler fluid capacity: 19.6 oz.
Barb size: 3/8".
Airflow: Puller (reversible).
