Derale Transmission Filter Kit Single Mount Ports Up Remote with Guage

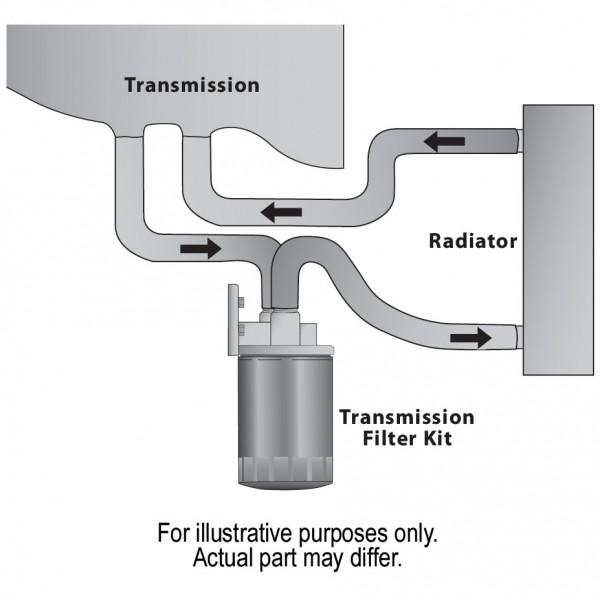

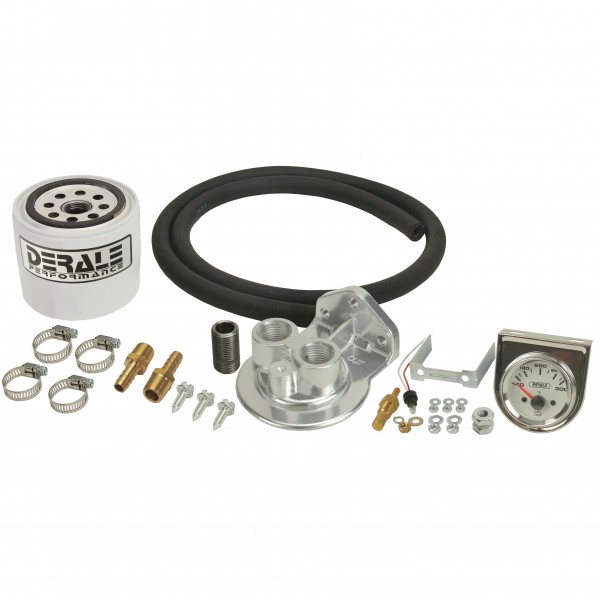

Our universal remote transmission filter kits enable quick and efficient filter changes and filter out contaminants that pass through OE-screen type filters. The premium version also includes our temperature gauge package with sending unit, mounting brackets and hardware. The increased fluid capacity also cools fluid temperatures helping to extend the life of the transmission. Single Mount 3/8" Npt Ports Up Remote Transmission Filter Kit with temperature gauge package with sending unit, mounting brackets and hardware. Specifications: Filter Nominal Micron Rating of 21, By-Pass Valve Setting-PSI: 8-11, Anti-Drain Back Valve: Yes, Burst Pressure-PSI 340, Max Flow Rate: 7-9 US Gallons Per Minute, Filter Dimensions: 3-1/2" OD x 3-7/8", Filter thread size: 3/4"-16, Filter landing: 2-1/2" to 3-1/2", Inlet size: 3/8" NPT, Barb size: 3/8",Hose size: 3/8", Hose length 4ft. Gauge temperature range 140-300°F. Gauge size 2-1/16". Sending unit thread size 1/8" NPT Derale 13091
