Derale Single Ports Up 1/2" NPT Remote Filter Mount Dual Thread Entry 25708
Part Number:
1028

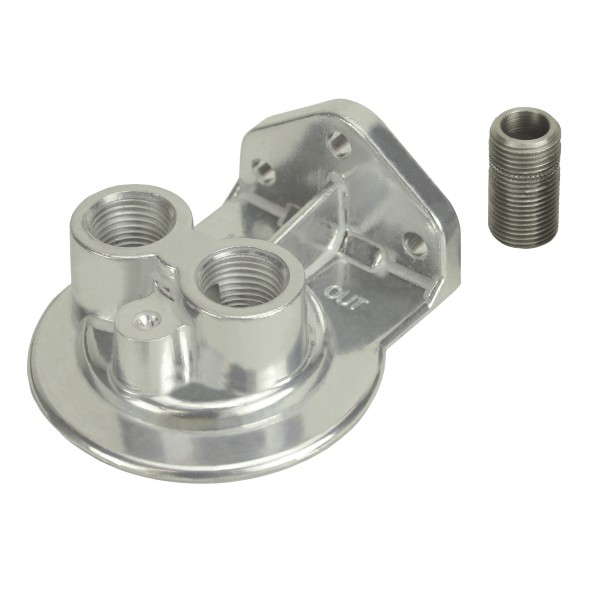

High quality aluminum die cast remote single ports up mount with 3/4"-16 filter threads and 1/2" NPT inlet & outlet ports. Derale 15708
This high quality aluminum die cast remote single ports up mount with 3/4"-16 filter threads and 1/2" NPT inlet & outlet ports allows for remounting filter for easy access to make messy filter changes under the vehicle a thing of the past. Temperature sender landing and dimple provided for an easy drill & tap installation. Comes with ultra bright polished finish. Filter mount uses Fram PH8A Oil Filter or equivalent.
Specifications:
Filter thread size: 3/4"-16.
Filter landing: 2-1/2" to 3-1/2".
Inlet size: 1/2" NPT.
Barb size: 1/2".
Features:

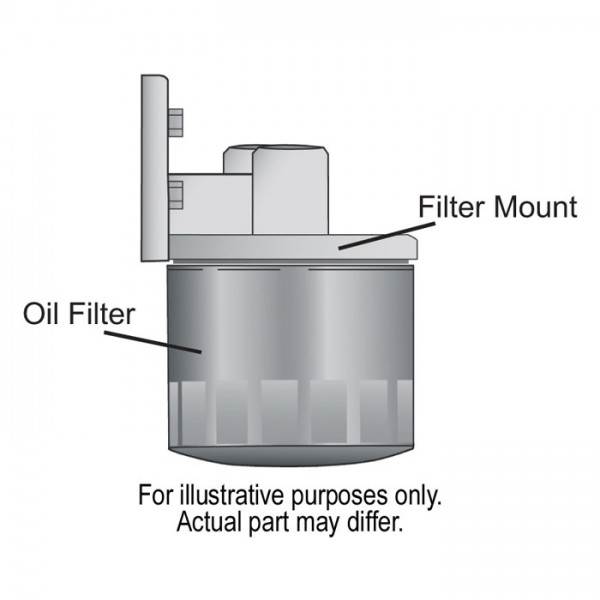

Allows oil filter to be remote mounted anywhere.
Cast from high quality aluminum.
Ultra bright finish.

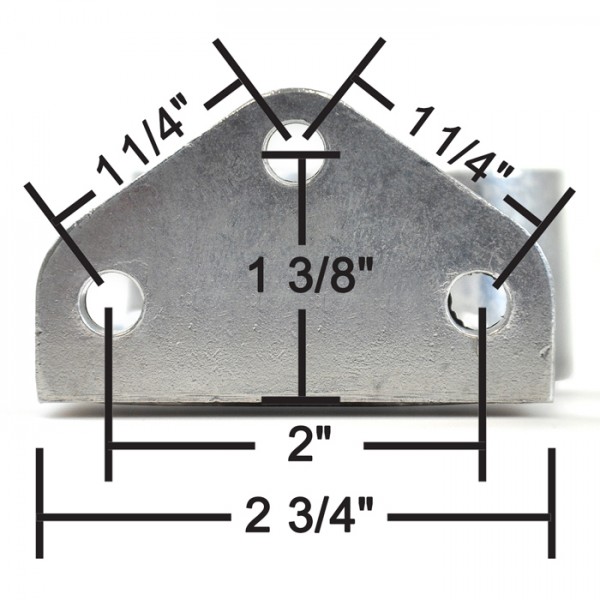

3 bolt heavy duty mounting plate.
3/4"-16 filter thread size.
1/2" NPT ports.
This high quality aluminum die cast remote single ports up mount with 3/4"-16 filter threads and 1/2" NPT inlet & outlet ports allows for remounting filter for easy access to make messy filter changes under the vehicle a thing of the past. Temperature sender landing and dimple provided for an easy drill & tap installation. Comes with ultra bright polished finish. Filter mount uses Fram PH8A Oil Filter or equivalent.
Specifications:
Filter thread size: 3/4"-16.
Filter landing: 2-1/2" to 3-1/2".
Inlet size: 1/2" NPT.
Barb size: 1/2".
Features:
Allows oil filter to be remote mounted anywhere.
Cast from high quality aluminum.
Ultra bright finish.
3 bolt heavy duty mounting plate.
3/4"-16 filter thread size.
1/2" NPT ports.
